The easiest SXS kits to install and set up, optional Color Optix™ lighting control, and even higher performance, all to ensure an epic off-road audio experience.

Features & Benefits:

Plug-and-Play Design: No drilling, no cutting and designed to work right out of the box. Simple installation ensures less time in the garage and more time out riding.

Element Ready™: Purpose built for the off-road environment, Rockford’s Element ReadyTM products are built to stand up to water, dirt, mud and UV rays, making sure all your audio components perform regardless of the conditions.

RF3 (Rockford Factory Fit & Finish): Designed and engineered to match and compliment the factory fit and finish of your vehicle. These components are purpose built to the exact specifications to ensure the best in class fitment and look.

Connectivity Control: With Bluetooth connectivity, AUX and USB inputs, it’s easy to control your music or even charge your phone, no matter where the trail takes you.

STAGE-6 PERFORMANCE

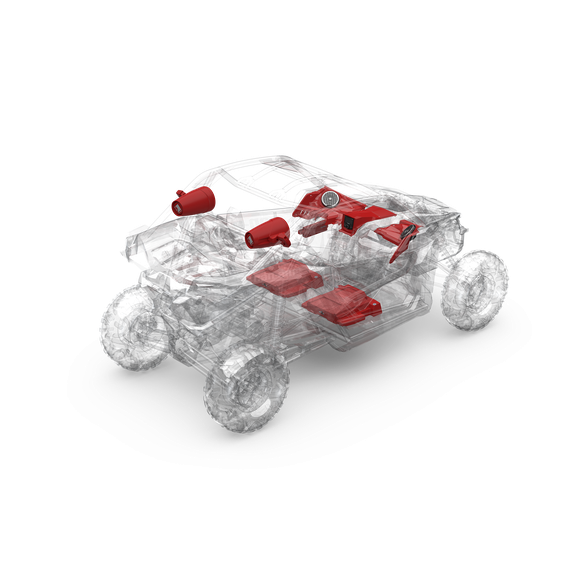

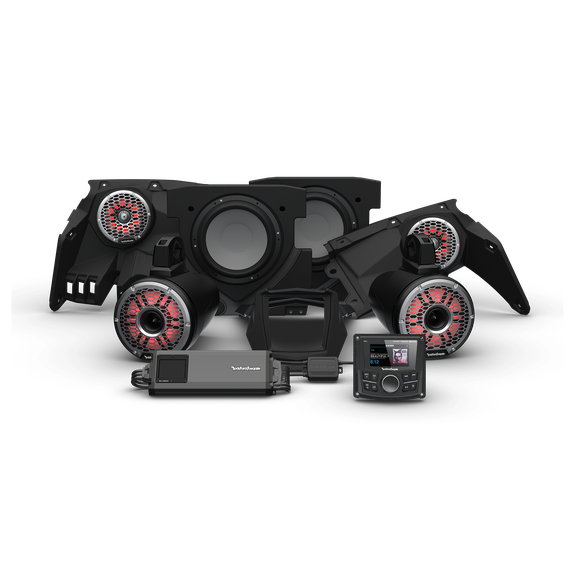

The 1st Stage 6 kit to be released from Rockford Fosgate takes UTV audio to the next level by making it even LOUDER! System allows you to add front and rear Color Optix™ speakers and a subwoofer on select Maverick X3 models. Kit is equipped with a PMX-3 digital media receiver with camera video input and SiriusXM Ready® satellite radio, upper dash kit, front speaker panels, M2 6.5” Color Optix™ speakers, 1,500-watt Element Ready™ amplifier, under-seat front subwoofer enclosures, M2 10” Element Ready™ subwoofers, 4-gauge wiring harness, M2 8” Color Optix™ horn-loaded moto-cans with harness, and a Color Optix™ controller. Kit supplied with all necessary mounting and installation hardware requiring minimal time and tools.

FEATURES AT A GLANCE

• Enclosures for speakers and/or subwoofer integrate with no loss of passenger space
• Direct connect wiring harnesses for Can-Am X3 models
• Color Optix™ enabled
• Complete Element Ready™ audio system
• PMX-3: Compact AM/FM/WB Digital Media Receiver 2.7" LCD w/ Backup Cam & SiriusXM® Ready
• PMX-RGB: Color Optix™ Light Controller with Optional App Interface
• M5-1500X5: 1500 Watt 5-Channel Element Ready™ Amplifier
• M2-65B: M2 6.5” Color Optix™ Marine 2-Way Speakers - Black
• M2WL-8HB: M2 8” Color Optix™ 2-Way Horn Loaded Wake Tower Speakers - Black
• MX-RSW16: Rear Color Optix™ Speaker Add-On Harness for Select UTV Models
• X317-K4: 4 AWG Amp Installation Kit for Select Can-Am® Maverick X3 Models
• X317-FSE: 6.5" Front Color Optix™ Speaker Panels with Smart-Lok for Select Can-Am® Maverick X3 Models
• X317-DK: Dash Kit for PMX-1, PMX-2 or PMX-3 on Select Can-Am® Maverick X3 Models
• Easy setup of audio system: amplifier preset for maximum performance without tuning
• X317-M2FWE: M2 10" Element Ready™ Loaded Subwoofer Enclosure for Select Can-Am® Maverick X3 Models (no RGB Color Optix™)
• Includes wired antenna

Mounting Hardware

Yes

Grille/Trim Ring Included

Yes

Included In The Box

(1 ea) PMX-3
(1 ea) X317-DK
(1 pr) X317-FSE
(1 pr) M2-65B
(1 ea) M5-1500X5
(2 ea) X317-M2FWE
(1 ea) X317-K4
(1 pr) M2WL-8HB
(1 ea) MX-RSW16
(1 ea) PMX-RGB

Shipping Weight

100 Lbs (45.35 Kg)

LEGEND

YES Can-Am model IS compatible with kit	NO Can-Am model NOT compatible with kit	NOT AVAILABLE Can-Am model not produced this year

FITMENT

YES 2-Seat	YES 4-Seat	YES Hi/Low Seat Level	COMPATIBLE Front Window (remove to install speakers)	POSSIBLE Rear Window (mount cans externally)	POSSIBLE Snorkel (mount cans externally)

MAVERICK X3 (2-SEAT)

MODEL	2017	2018	2019	2020	2021	2022	2023	2024
Maverick X3 900 HO [64]	—	✔	—	—	—	—	—	—
Maverick X3 Turbo [64]	—	✔	✔	✔	—	—	—	—
Maverick X3 Turbo R [64]	✔	✔	✔	—	—	—	—	—
Maverick X3 ds Turbo [64]	—	—	—	—	✔	✔	✔	✔
Maverick X3 ds Turbo R [64]	—	—	—	✔	✔	—	—	—
Maverick X3 ds Turbo RR [64]	—	—	—	—	—	✔	✔	✔
Maverick X3 rs Turbo [72]	—	—	—	—	—	—	—	✔
Maverick X3 rs Turbo R [72]	—	—	—	✔	—	—	—	—
Maverick X3 rs Turbo RR [72]	—	—	—	—	—	✔	✔	✔

MAVERICK X3 X (2-SEAT)

MODEL	2017	2018	2019	2020	2021	2022	2023	2024
Maverick X3 X ds Turbo R [64]	✔	✔	✔	—	—	—	—	—
Maverick X3 X ds Turbo RR [64]	—	—	—	✔	✔	✔	✔	✔
Maverick X3 X mr Turbo [64] ¹	—	✔¹ ³	✔¹ ³	✔¹	✔¹	—	—	—
Maverick X3 X mr Turbo R [72] ¹	—	✔¹ ³	✔¹ ³	—	—	—	—	—
Maverick X3 X mr Turbo RR [64]	—	—	—	—	—	✔	✔	✔
Maverick X3 X mr Turbo RR [72]	—	—	—	—	✔	✔	—	—
Maverick X3 X mr Turbo RR [72] ¹	—	—	—	✔¹	✔¹	—	✔¹	✔¹
Maverick X3 X rc Turbo [64]	—	✔	✔³	✔	✔	—	—	—
Maverick X3 X rc Turbo R [72] ²	—	X²	X²	—	—	—	—	—
Maverick X3 X rc Turbo RR [64]	—	—	—	—	—	✔	✔	✔
Maverick X3 X rc Turbo RR [72] ²	—	—	—	X²	X²	X²	X²	X²
Maverick X3 X rs Turbo R [72]	✔	✔	✔³	—	—	—	—	—
Maverick X3 X rs Turbo RR [72]	—	—	—	✔	—	✔	✔	✔
Maverick X3 X rs Turbo RR Smart-Shox [72]	—	—	—	—	✔	✔	✔	✔

MAVERICK X3 MAX (4-SEAT)

MODEL	2017	2018	2019	2020	2021	2022	2023	2024
Maverick X3 MAX Turbo [64]	—	✔	✔	✔	—	—	—	—
Maverick X3 MAX Turbo R [64]	✔	✔	✔	—	—	—	—	—
Maverick X3 MAX ds Turbo [64]	—	—	—	—	✔	✔	✔	✔
Maverick X3 MAX ds Turbo R [64]	—	—	—	✔	✔	—	—	—
Maverick X3 MAX ds Turbo RR [64]	—	—	—	—	—	✔	✔	✔
Maverick X3 MAX rs Turbo [72]	—	—	—	—	—	—	—	✔
Maverick X3 MAX rs Turbo R [72]	—	—	—	✔	✔	—	—	—
Maverick X3 MAX rs Tubro RR [72]	—	—	—	—	—	✔	✔	✔

MAVERICK X3 MAX X (4-SEAT)

MODEL	2017	2018	2019	2020	2021	2022	2023	2024
Maverick X3 MAX X ds Turbo R [64]	✔	✔	✔³	—	—	—	—	—
Maverick X3 MAX X ds Turbo RR [64]	—	—	—	✔	✔	✔	✔	✔
Maverick X3 MAX X rc Turbo RR [72] ²	—	—	—	—	—	—	—	X²
Maverick X3 MAX X mr Turbo RR [72] ¹	—	—	—	✔¹	✔¹	✔¹	✔¹	✔¹
Maverick X3 MAX X rs Turbo R [72]	✔	✔	✔³	—	—	—	—	—
Maverick X3 MAX X rs Turbo RR [72]	—	—	—	✔	✔	✔	✔	✔
Maverick X3 MAX X rs Turbo RR Smart-Shox [72]	—	—	—	—	✔	✔	✔	✔

[] New naming convention — started in 2022 — featuring 64" and 72" width models. Older models denote [width] in name to clarify make/model/year progression.
1 Snorkel prevents stages with rear moto-cans from being installed inside roll-cage, must be installed outside roll-cage.
2 Intrusion Bar introduced in 2018, causes (FSE) front speaker clearance issue.
3 Smart-Lok™ introduced in 2018, requires 2nd (RFX317-FSE) or 3rd generation (X317-FSE) front speaker panels.
