Alpha12 Digital Smart Switcher with 12 Outputs

SSV WORKS

SKU : 230-SW-E12-10

Power Cable Length : 10ft.

Alpha12 by SSV Works is the first digital accessory switcher of its kind. Featuring 12 fully programmable outputs controlled by an LCD touch-button display with customizable icons.

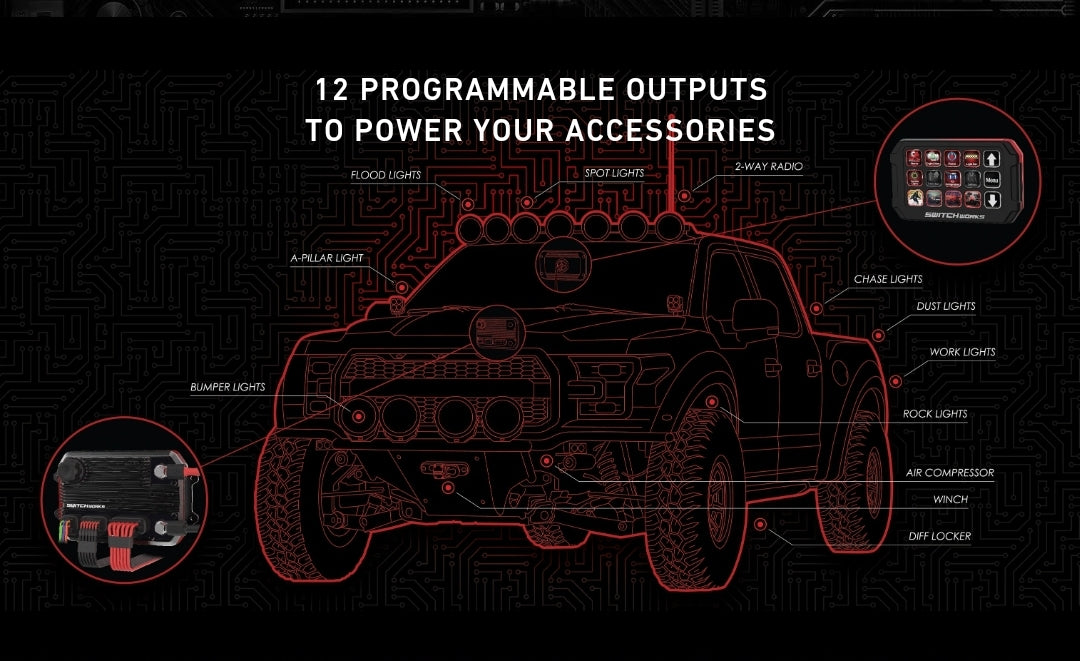

12 PROGRAMMABLE OUTPUTS TO POWER YOUR ACCESSORIES

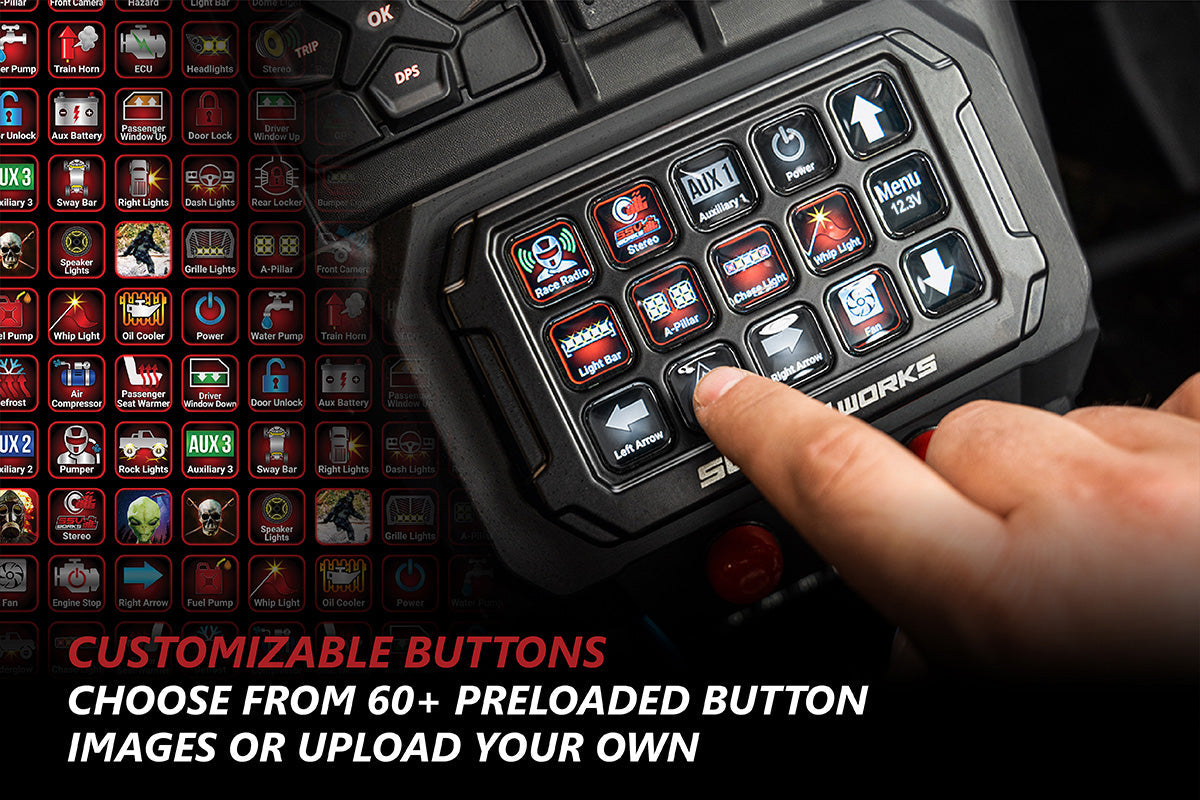

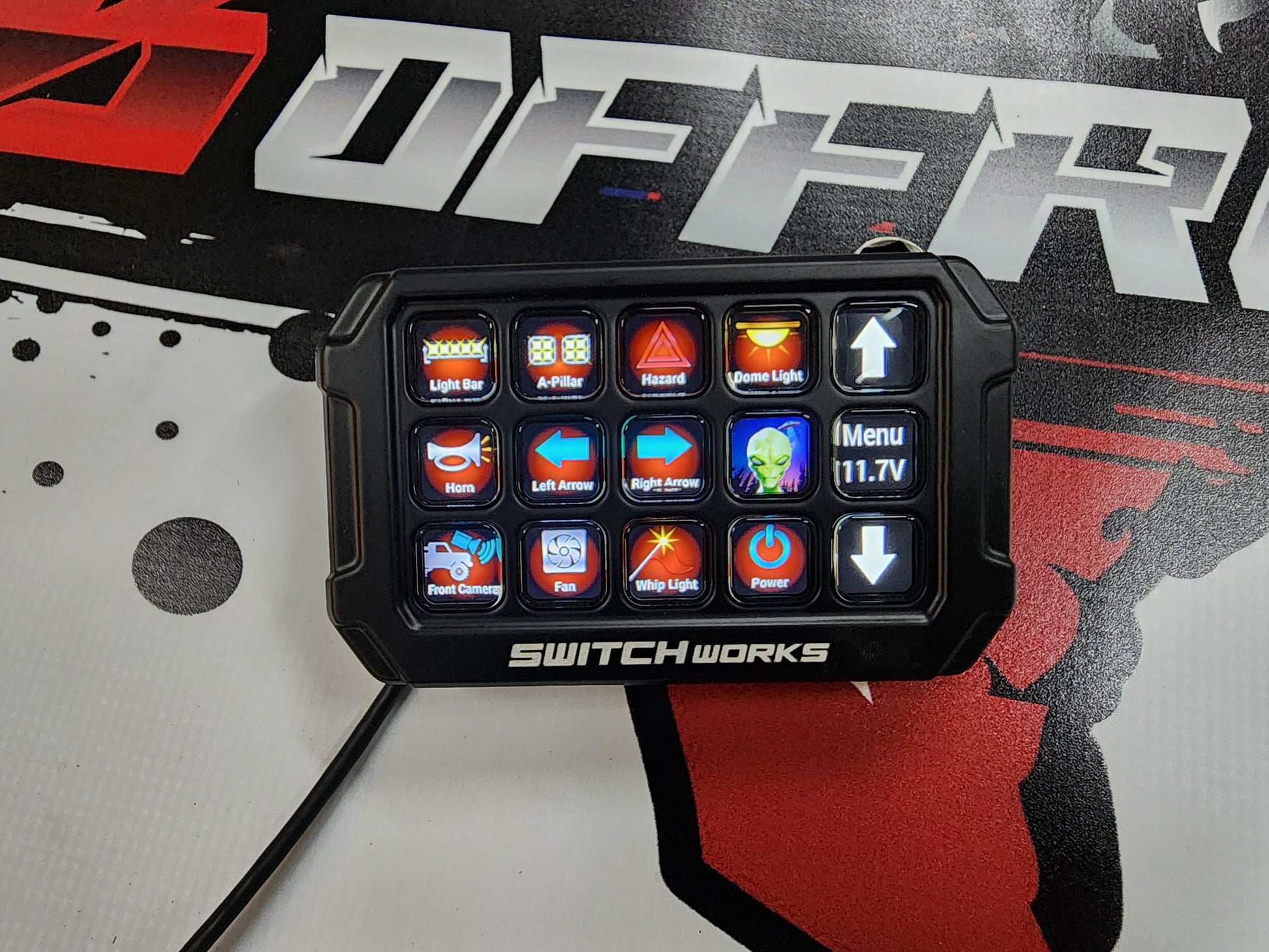

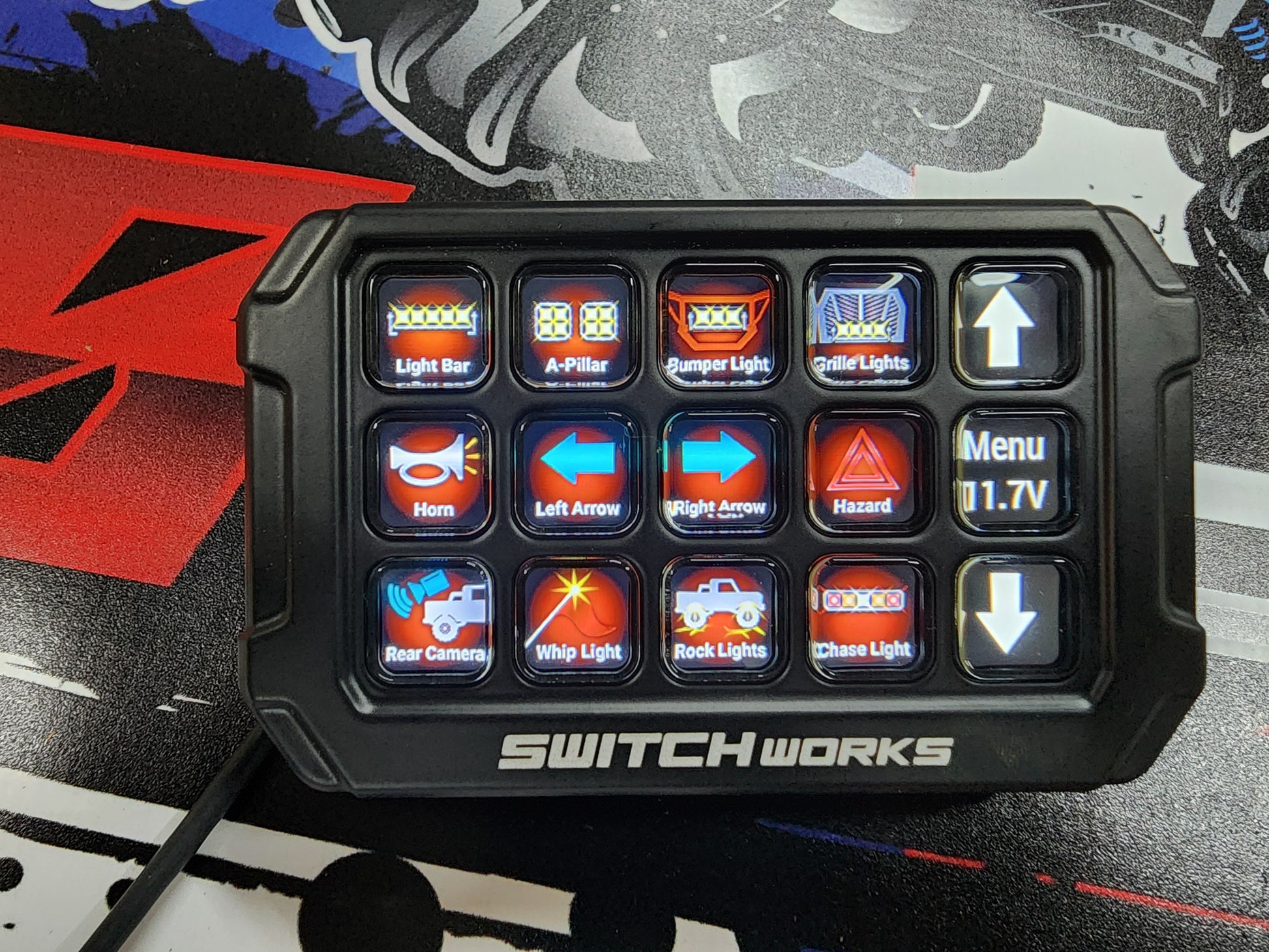

LCD PUSH-BUTTONS

Behind each individual button is an LCD screen. This means that you can digitally change your icon, and access menus through the buttons. From live-amperage readings, to button action setup, everything you need is easily accessible without the need of downloading an app.

LIVE AMPERAGE READINGS

Holding the "Menu" button displays your real-time amperage draw so you can see the exact amount of power your accessories are currently pulling.

MACRO CONFIGURATIONS

Whether you want your accessory to work with or without the ignition on, simple push ON/push OFF or one of the many other functional features, You can quickly and easily set the function for each output.

BUTTON ICONS/LOCATIONS

The beauty of running an electronic solid state system. is your output location (the slot you wire your accessories) doesn't determine the button location. You can choose button 1 to control output 3, or 4, even both! The possibilities are endless.

AMP LIMITATIONS / PRIORITY SHUTDOWN

Set the amp limitation based on the vehicle you install Alpha12 in. You can set priority shutdown in case your vehicle runs into any sort of voltage issue.

ADD MORE CIRCUITS OR MORE CONTROLLERS

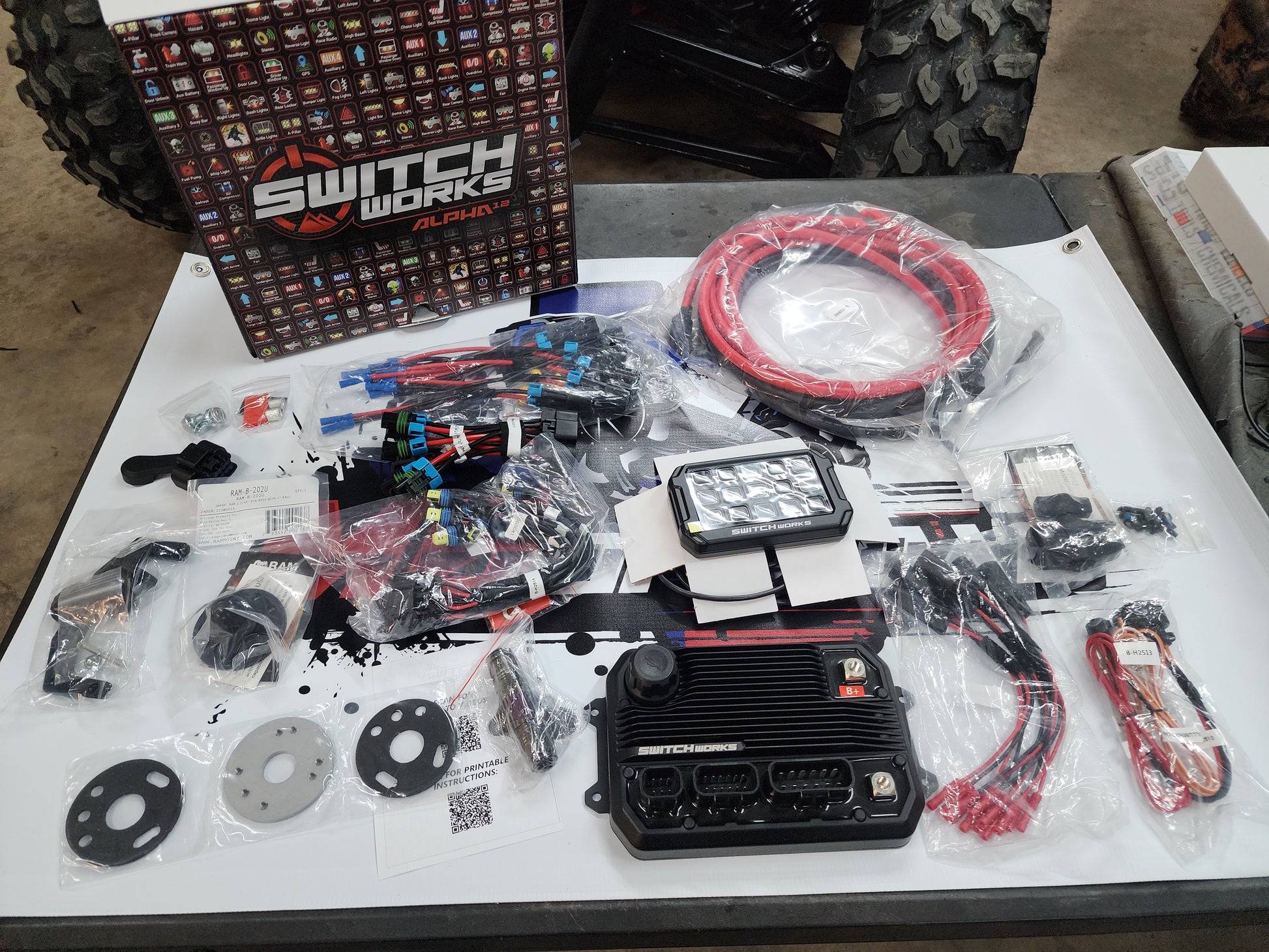

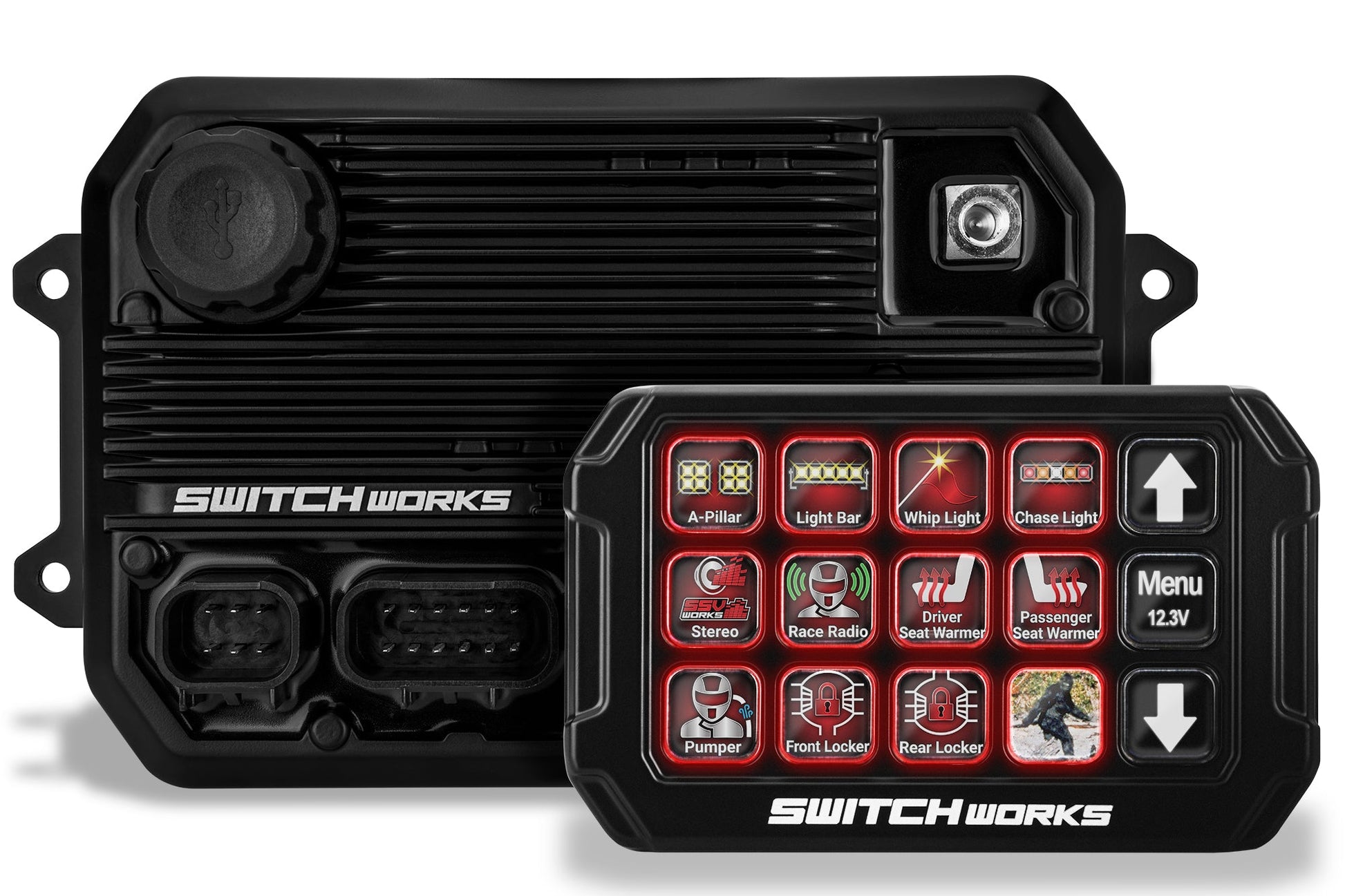

SWITCH Works comes with one controller and one brain which offers the 6 low-current and 6 high-current outputs. You can purchase a secondary controller or secondary brain for different configurations.

ADD MORE OUTPUTS

Need more then 12-ouputs? SWITCH Works allows you to easily connect a second brain while utilizing one single controller, keeping your dash clean and clear of clutter.

CONTROL FROM DIFFERENT LOCATIONS

In reverse of adding a second brain, you can also add a second controller to a single brain. One controller for the driver and one for the co-driver, or one controller in the cab and one in the bed of your truck.

APP CONFIGURATION

We've made configuration as easy as possible. If navigating menus within the controller aren't your thing, you can simply download the PC app and upload your own custom icons(icons are only uploaded through the app, not created), or configure your entire system. Can't figure something out? No problem. We can configure everything on our end for you, send you the file and you can upload it directly to your SWITCH Works via USB.

12 OUTPUT DIGITAL ACCESSORIES SMART-SWITCHER

12 Fully Programmable Outputs Controlled by an LCD Touch-Button Display

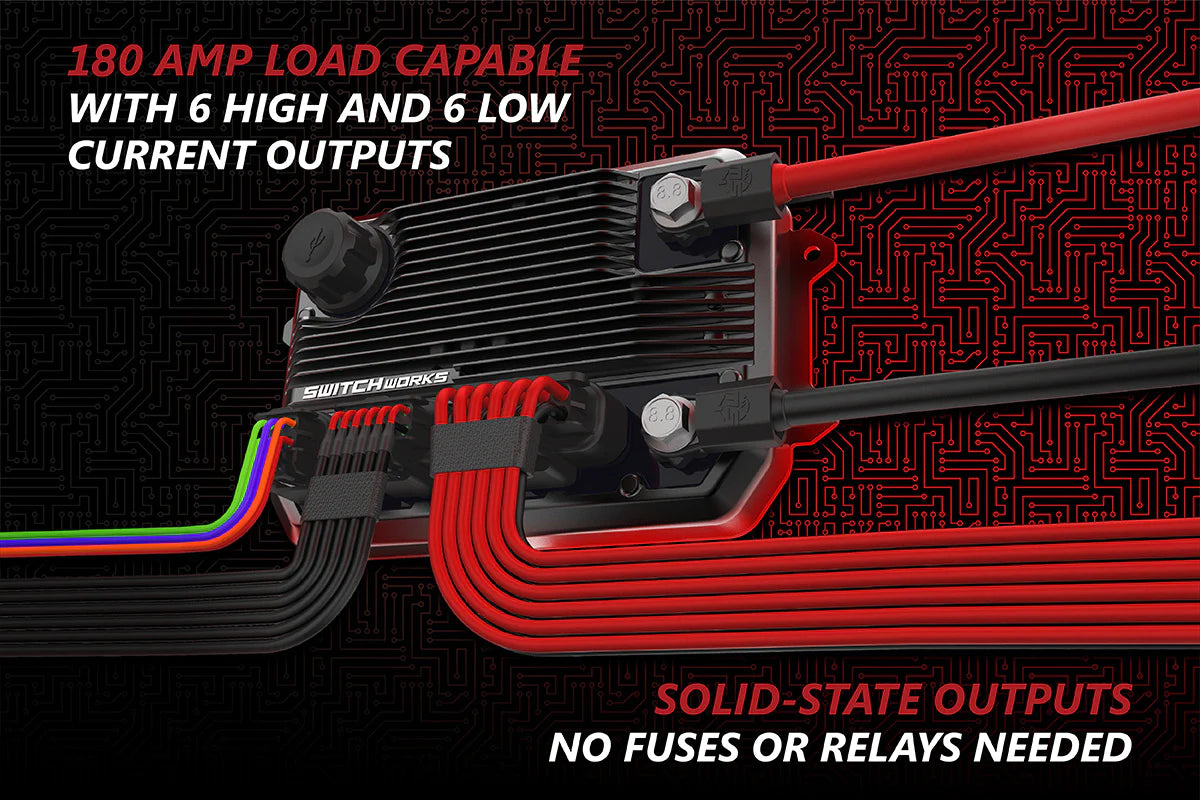

180 Amp Load Capable with 6 High-Current/6 Low-Current Outputs

Choose From 60+ Pre-Loaded Button Images or Upload Your Own

Power/Ground Direct Connections w/Weather-Proof Connectors

Solid-State Outputs, No Fuses or Relays Needed

Configurable Amperage Limitations Per Output

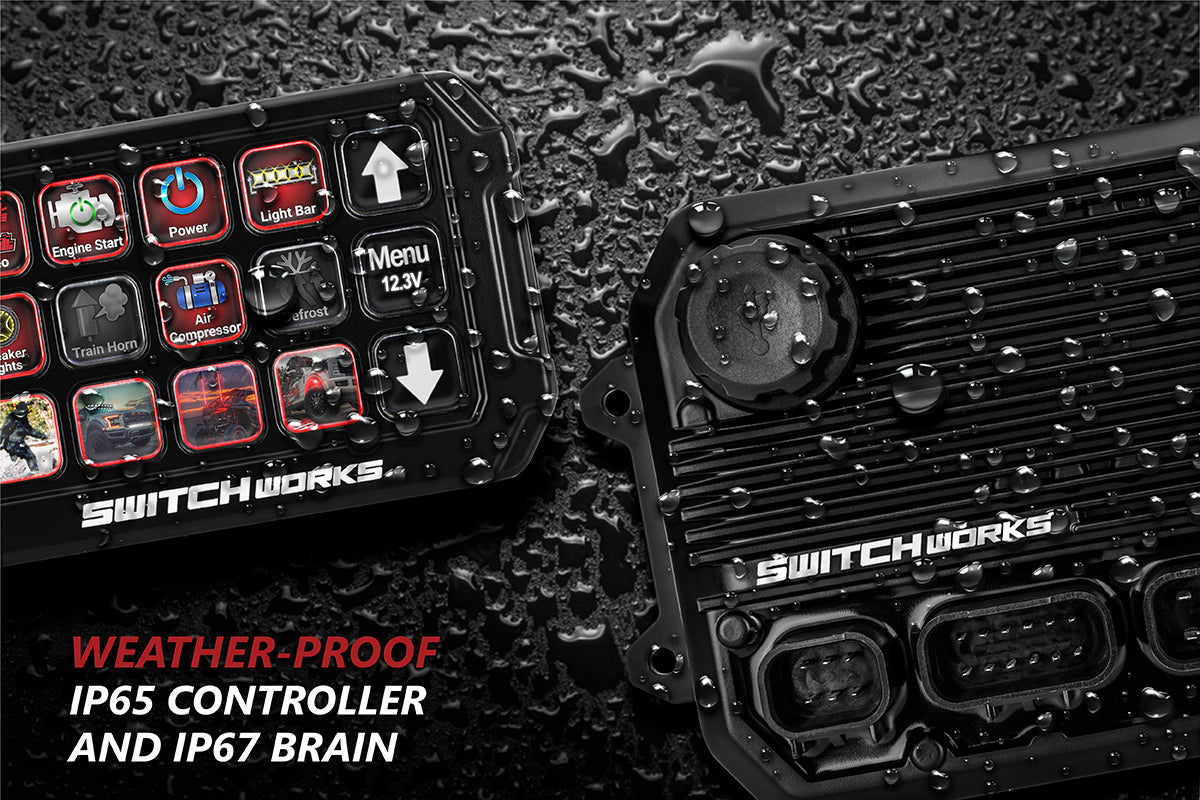

Weather-Proof: IP67 Brain and IP65 Controller

Hyper-Brite Display for Day/Night Mode

System Health / Hazard Warnings

Low Profile for Easy integration

Dual Function Buttons

NOT JUST FOR UTVs

With a configurable range of 80 to 180 amps, SWITCH Works is an ideal solution for both on-road and off-road vehicles, RVs, motorhomes, boats, and more.
